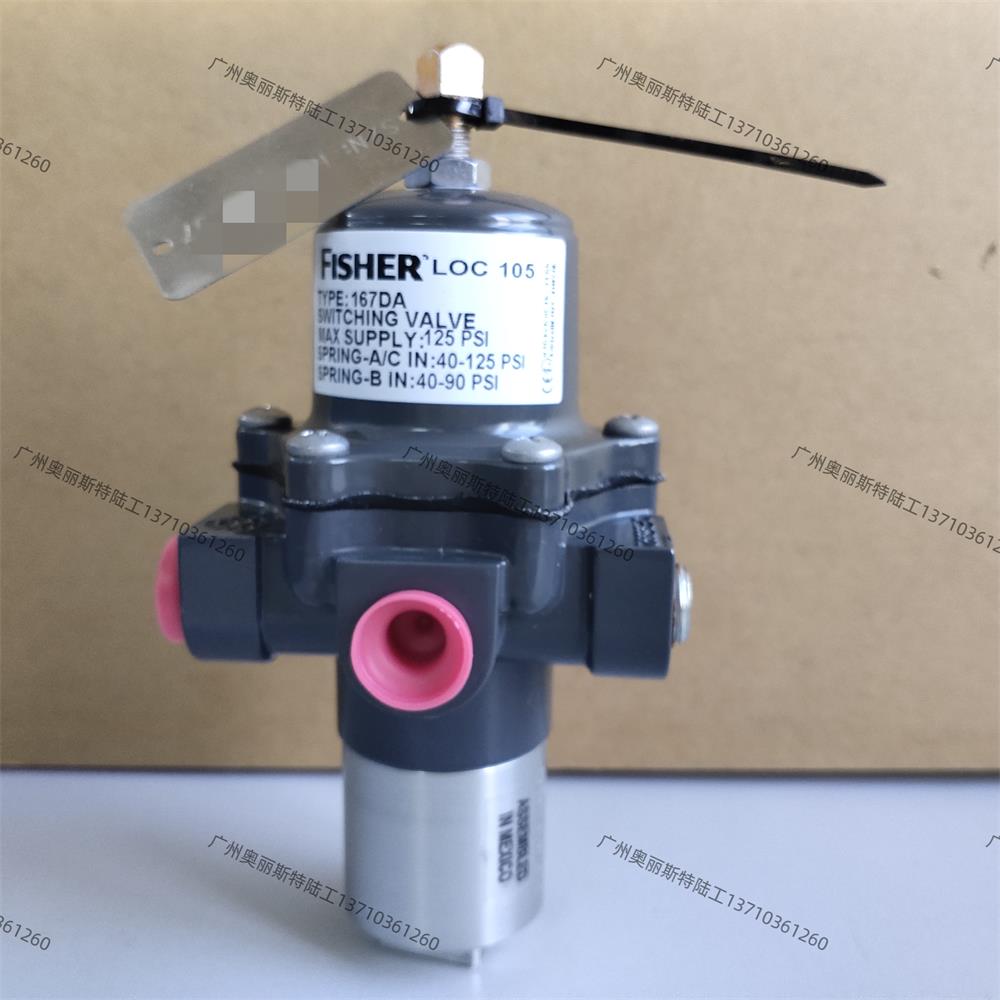

167D 系列切換閥用于向指揮器作用式控制器和其他氣動儀器提供降低的穩定氣化液體壓力。 167D 和 167DS 型閥門是兩通切換閥。 167DA 和 167DAS 型閥門是三通切換閥。廣州奧麗斯特燃氣設備有限公司咨詢電話：零貳零-捌貳叁貳玖陸貳伍，壹叁柒壹零叁陸壹貳陸零/13710361260-陸熙。

Fisher 167D系列切換閥功能

緊湊

簡易調節

維護簡單

經久耐用

耐腐蝕的緊固件

可選不銹鋼材料結構

Fisher 167D 系列切換閥規格

可選結構 167D 和 167DS：兩通切換閥，167DA 和 167DAS：三通切換閥

閥體尺寸和端口連接方式 端口 A 和 C：1/4 或 1/2 NPT，排氣和控壓連接（端口 D）和端口 B：1/4 NPT

入口壓力（閥體額定值）：400 psig / 27.6 bar

溫度適用范圍 標準螺栓：-20 至 180°F / -29 至 82°C，不銹鋼螺栓：-40 至 180°F / -40 至 82°C，F(xiàn)KM 裝飾件：0 至 300°F / -18 至 149°C

單位名稱：廣州奧麗斯特燃氣設備有限公司

單位地址：廣州市黃埔區宏明路271號B201室

167D Series switching valves are used to deliver constant reduced pressure of gaseous fluids to pilot-operated controllers and other pneumatic instrumentation. Types 167D and 167DS are two-way switching valves. Types 167DA and 167DAS are three-way switching valves.

Features

Compact

Easy and Accurate Adjustment

Ease of Maintenance

Rugged Construction

Corrosion Resistant Fasteners

Optional Stainless Steel Material Construction

Available Body Materials

67DSeries: Aluminum67DS Series Stainless Steel

Available Constructions

67D & 67DS: standalone pressure regulator

67DR & 67CDR: with soft seat internal relief67DF & 67CDS: with filter67DFR & 67DFSR: with filter and soft seat internal relief

Body Size and End Connection Style

1/2 NPT

Maximum Inlet Pressure (Body Rating)

All Filtered Models: 250 psig / 17.2 barAll Unfiltered Models: 400 psig / 27.6 bar

Maximum Emergency Outlet Pressure

150 psi / 10.3 bar over outlet pressure setting up to a maximum of 250 psi / 17.2 bar

Pressure Registration

Internal

Temperature Capabilities

NBR: -40 to 180°F / -40 to 82°CFKM: 0 to 300°F / -18 to 149°CSilicone (VMQ) Diaphragm and Low Temp bolting: -60 to 180°F / -51 to 82°C
